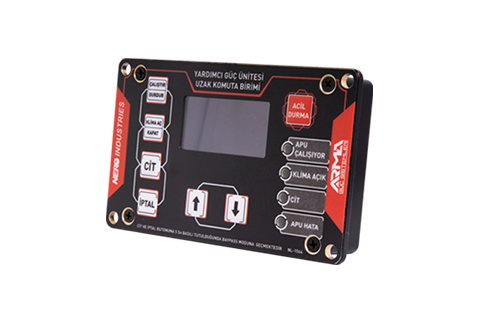

A-20F Remote Command Control Unit

Click Here to Contact Sales

• It is used to remote control APU.
• Being located by vehicle driver, it enables to reach all the data on APU with the information screen on it.
• Control unit enables to activate-cancel APU system, to activate-cancel air conditioning system.
• It is designed as per IP67 Standards. It is conformant to MIL-STD-810G and MIL-STD461E/F standards.

BUTTON SPECIFICATIONS

1. ON / OFF: APU on / off button.

2. AIR CONDITIONING ON/OFF

3. CIT: CIT test is performed when the relevant button is pressed.

4. CANCEL: Pressing the BIT button for 5 seconds will cancel this operation.

5. UP DIRECT MENU BUTTON-DOWN MENU BUTTON

6. EMERGENCY STOP

7. APU ON: LED indicators for states

8. AIR CONDITIONER ON

9. CIT : CIT led turns red when the test fails

10. FAULT : LED turns off when cancel button is pressed.

TECHNICAL SPECIFICATIONS

DIMENSIONS (L x W x H)

45 x 155 x 85 ±5 mm

WEIGHT

0,48 KG ± 0,1

COMMUNICATION PROTOCOL

CANBUS J1939

OPERATING VOLTAGE

24 VDC

Download Datasheet

Discover our most popular auxiliary power units

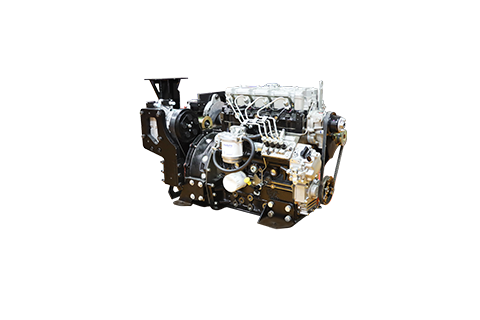

A20F

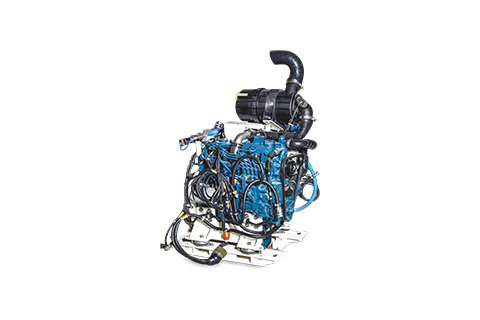

A20K

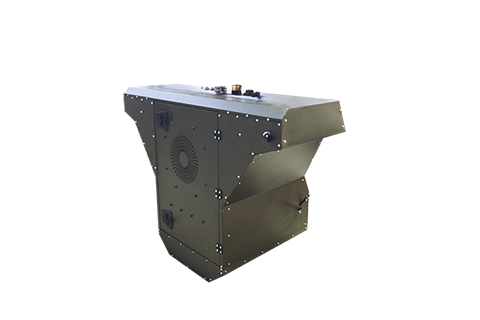

A22K

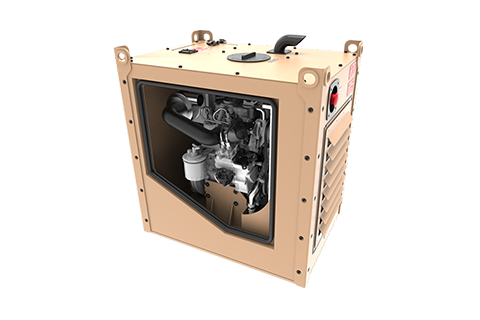

A141F

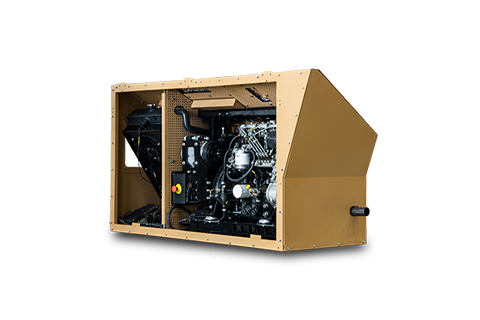

A151K

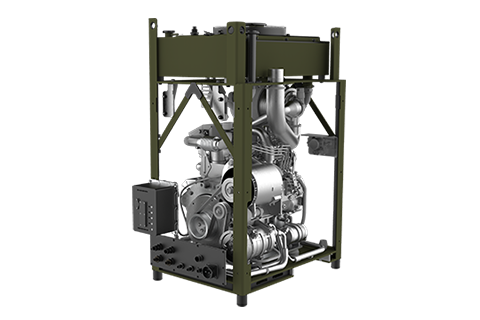

A12011

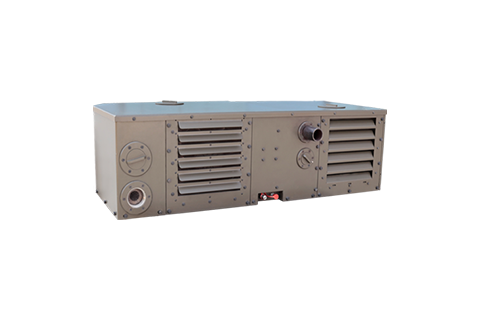

A1621K

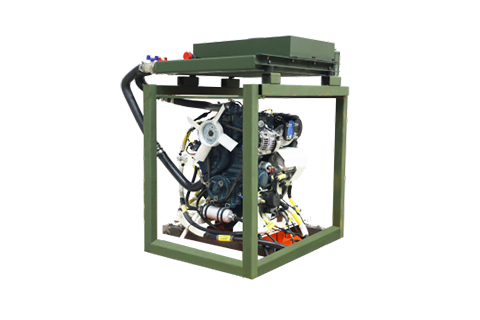

A21822

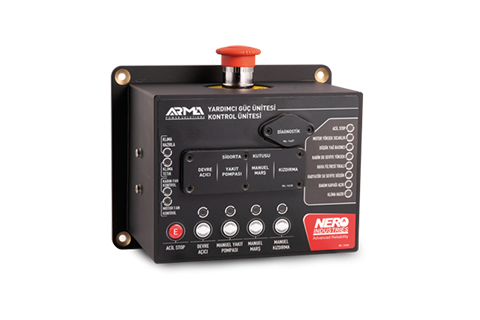

NL-1628 CONTROL PANEL
